IP66, NEMA 4/4x/13
UL listed, CSA certified
Metric knockouts
Can be used with base mounted or latch mounted contact blocks

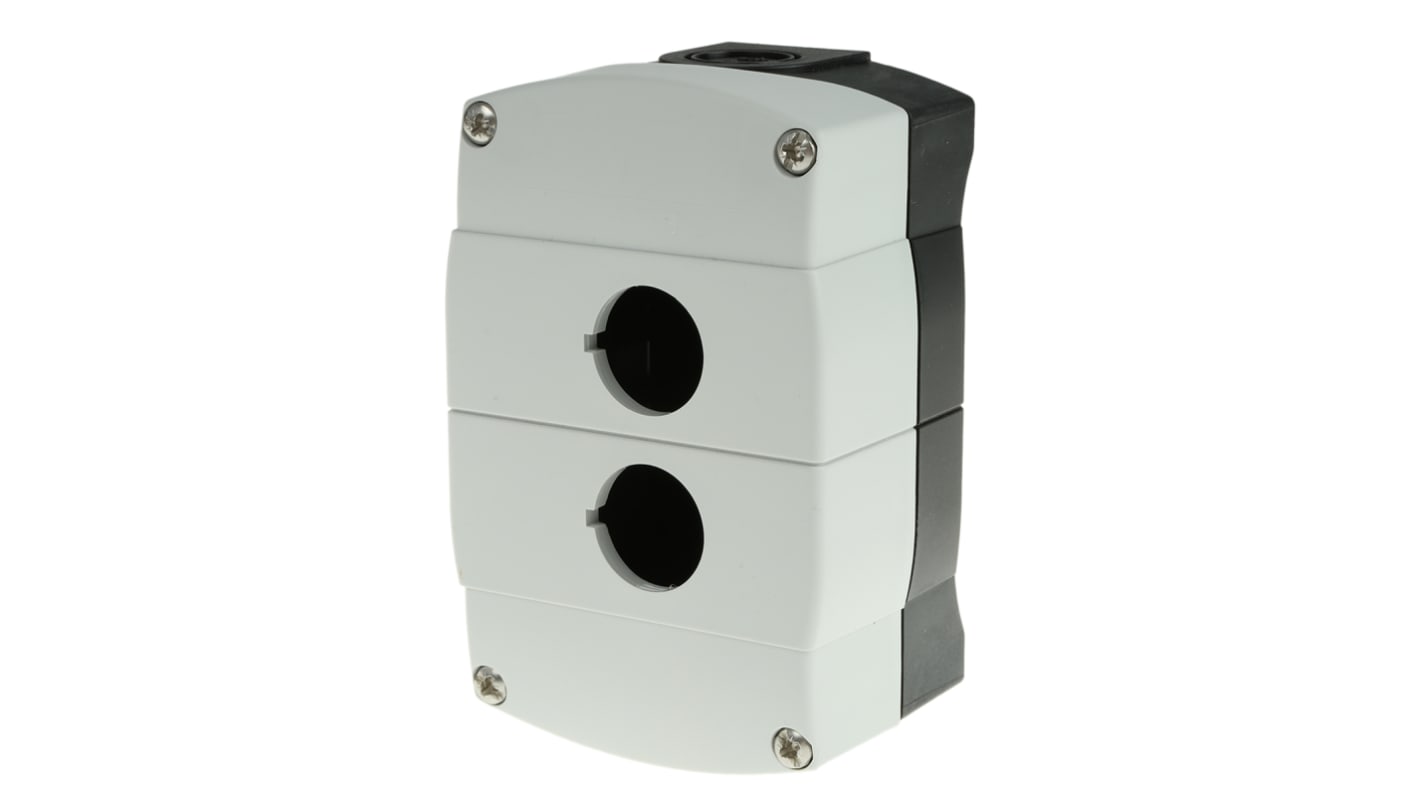

Keen to safely shield your switches in challenging working conditions? Get the job done with this push button enclosure from Rockwell Automation's Allen Bradley range. It has an IP66 rating, meaning it's fully protected against dust and high-pressure water jets. Thanks to its plastic body, it's resistant to impact and corrosion, so you can trust it holds its ground in harsh environments. Two pre-cut holes mean it accommodates up to two buttons to put machine control at your fingertips. Integrating this unit into your setup is easy as can be, as it works with push buttons that need a standard cutout diameter of 22mm.
Compact dimensions of 124 (H) x 79 (W) x 58mm (D) mean it's a sure fit in tight spaces
Suitable for use with base-mounted or latch-mounted contact blocks for versatility
Four included screws hold the front panel in place for protection against heavy vibrations
Optional legend plate (511-8689) for easy labelling and identification of buttons
UL
CSA
CE
Yes, this unit comes with M16/M20-sized knockouts, cutting down on preparation time so you can get to work quickly.
Allen Bradley 的 800-F 系列按钮,指示灯和附件经过专业设计和制造,可通过快速轻松地提醒人员危险,满足严苛的性能规格并减少停机时间。由于采用了先进的实体建模技术和有限元分析,每个零部件都能提供最佳的耐用性和效率。
操作员可以快速,轻松地安装,从而节省时间和金钱。800-F 系列具有以下优点: IP66 保护,符合 CE/UL/CSA 标准和 CCC (中国标准) ,耐腐蚀阳极化镀层,每个操作人员多达六个电路,以及单人面板安装。此系列还符合工业标准 22mm 孔固定要求。
800F 系列涵盖以下产品:
照明 / 非照明按钮和蘑菇形操控器
指示灯 LED 操作
选择器,扳钮,多功能和钥匙选择器开关 (2 和 3 个位置)
定制激光雕刻,用于按钮盖和扩散器
单转电位计总成
紧急停止按钮,包括独特的自监控触点块
面板轮廓的前部较低
提供多种硅树脂套管
塑料外壳
金属操控器坚固耐用
属性 | 数值 |
---|---|
系列 | 800F |
开孔直径 | 22mm |
开孔数目 | 2 |
外壳颜色 | 灰色 |
外壳标记 | 无 |
外壳材料 | 塑料 |
IP 防护等级 | IP66 |
