TE Connectivity FPC连接器, 0.3mm间距, 503566系列

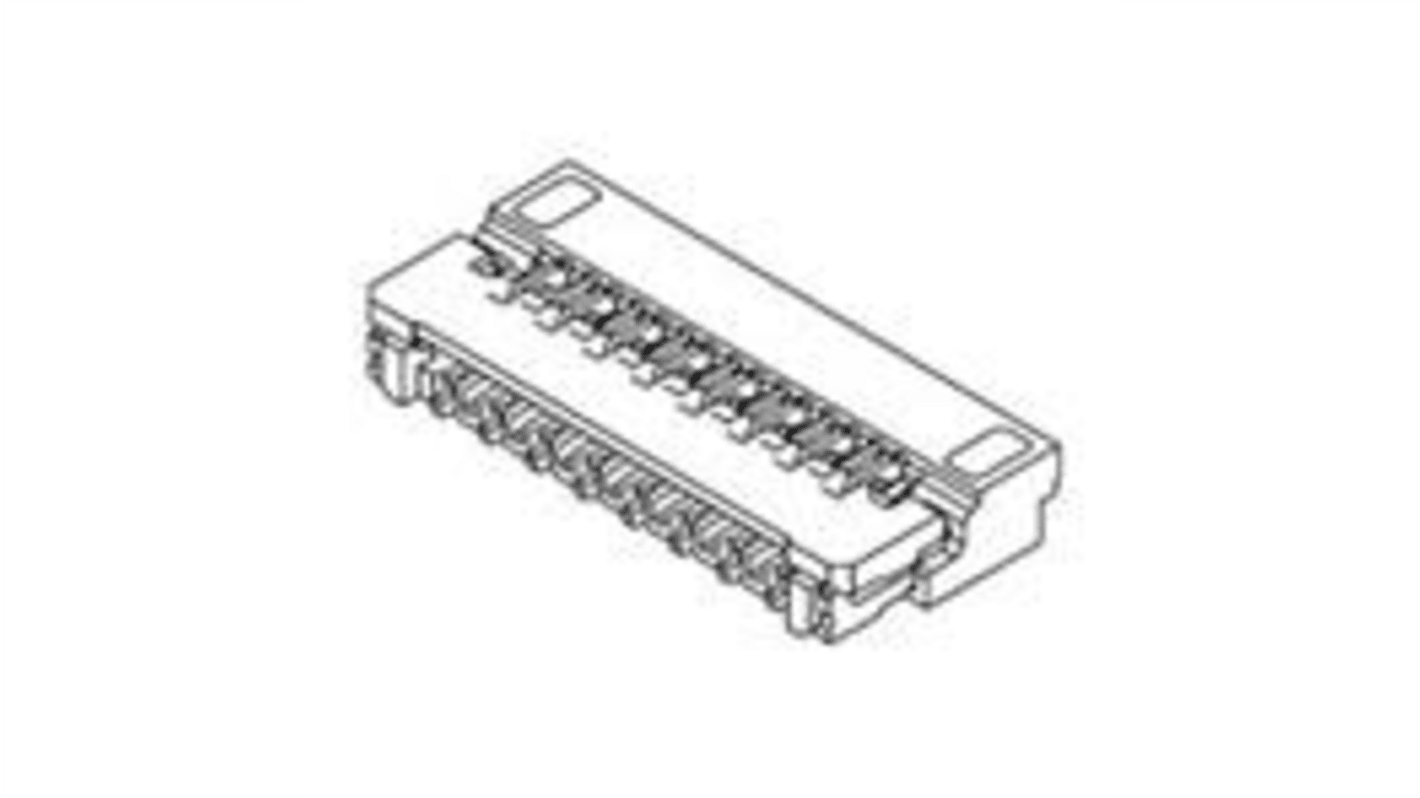

The TE Connectivity Easy-On FPC Connector is a compact, surface-mount, right-angle connector designed for flexible printed circuits (FPCs). It features a 0.30mm pitch and accommodates 23 circuits with a mated height of 0.95mm, making it ideal for space-constrained applications. The connector utilizes a front-flip actuator for secure cable retention and is constructed with gold over nickel plating for reliable electrical contact. It operates within a temperature range of -40°C to +105°C and is suitable for use with FPCs only.

Gold plating at mating and termination
RoHS compliant
