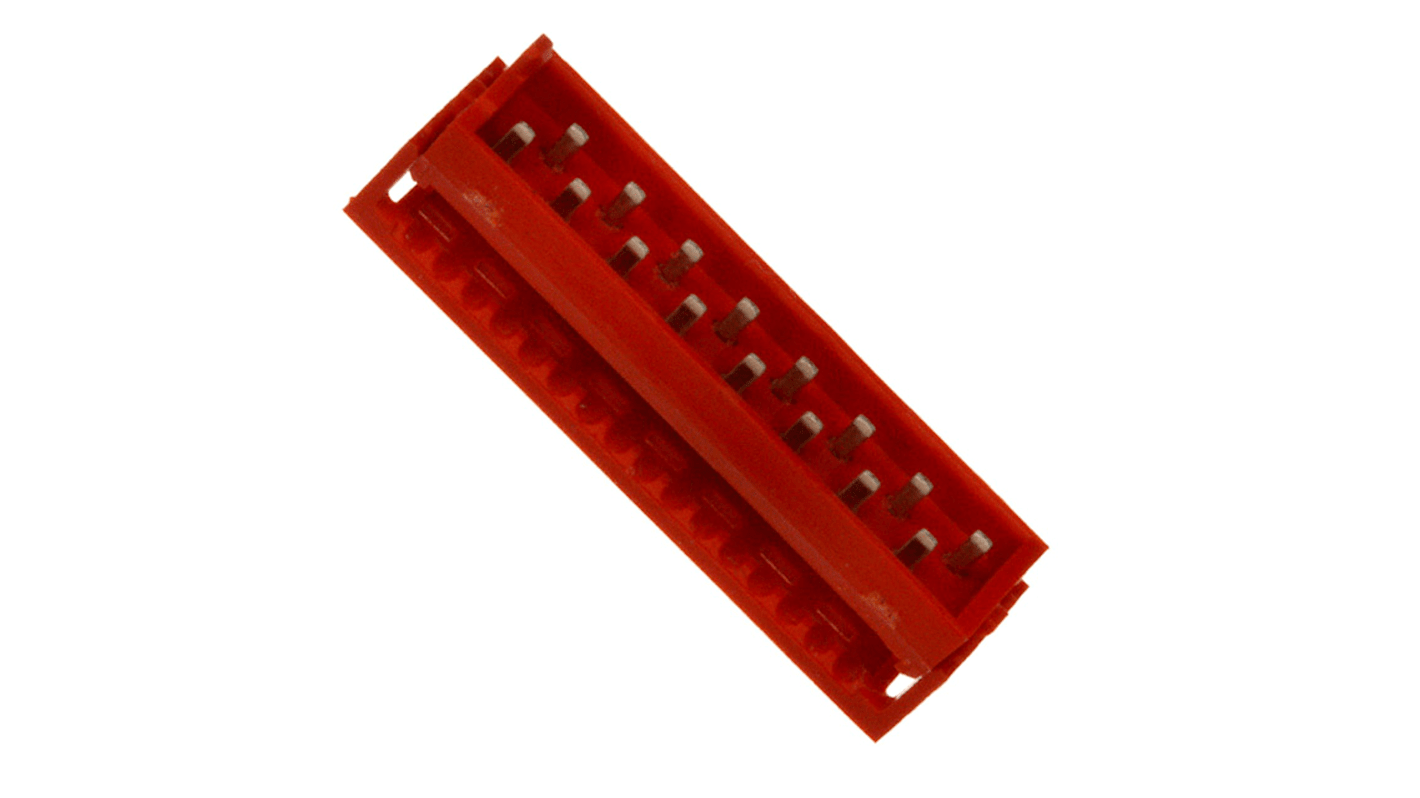

A low profile IDC connector plug for wire to board or board to board. The IDC plug headers and sockets feature a 2.54mm staggered pitch providing an enhanced connection and 1.27mm pitch ribbon cable connection.
The 16 way IDC plug features 2 rows of contacts constructed from Phosphor Bronze providing excellent wear resistance protecting against breaks from repeated insertions and a Tin over Nickel plating for a high level of conductivity with a hardwearing PBT housing.
A durable and reliable connector plug ideally suited for use in computers connecting drives including CD drives and SSDs.
特点和优点
Red IDC connector plug
16 way/ 2 rows
Voltage rating of 500V
2.54mm staggered pitch
Suitable for 1.27mm pitch ribbon cable
Contact resistance of 20MΩ
Insulation resistance of 1000MΩ
Short latch ejection
Cable mount design
Dimensions of 23.69 x 5mm
