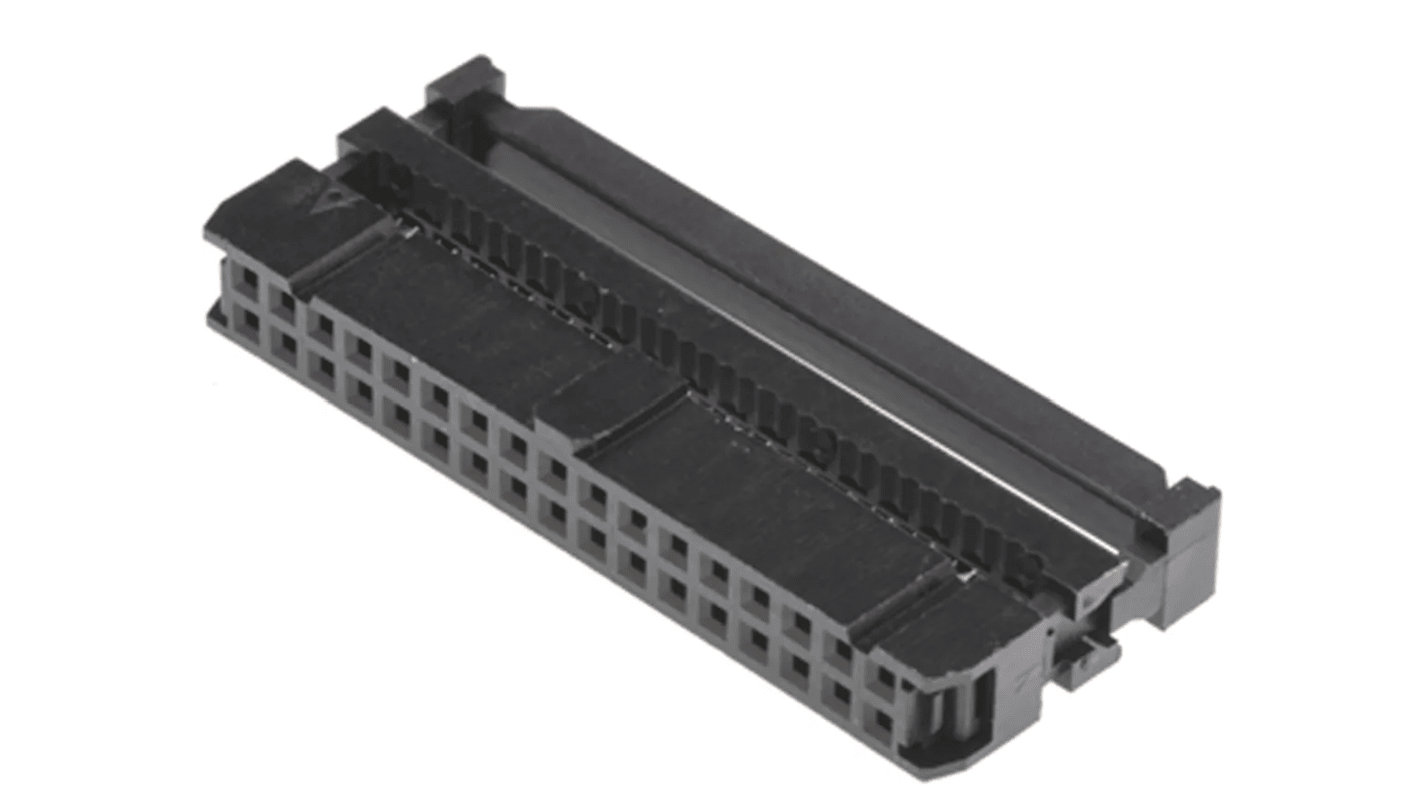

A low profile IDC connector jack for wire to board connections intended for use with flat ribbon cable. The IDC jack features a 2.54mm pitch providing stable connection and a polarising key design eliminating incorrect mating.
The 34 way IDC jack features 2 rows of contacts constructed from Phosphor Bronze providing excellent wear resistance protecting against breaks from repeated insertions and a Gold over Nickel plating for a high level of conductivity with a hardwearing PBT housing.
A durable and reliable connector jack ideally suited for use in computers connecting drives including CD drives and SSDs.
特点和优点
Black IDC connector jack
34 way/ 2 rows
Voltage rating of 1000 V ac
Suitable for 2.54mm pitch ribbon cable
Contact resistance of 20MΩ
Insulation resistance of 1000MΩ
Short latch ejection
Cable mount design (28AWG wire)
Dimensions of 47.75 x 7mm
