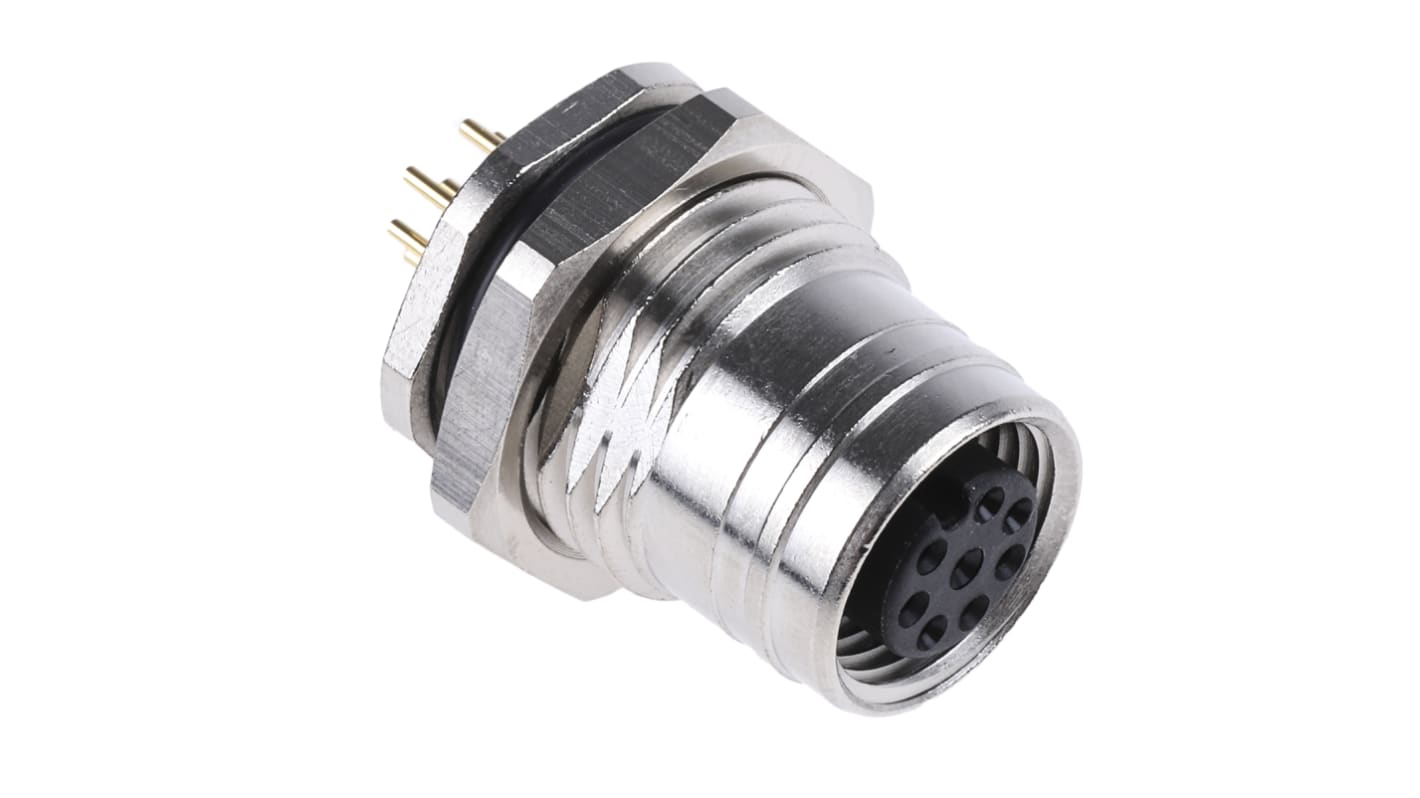

Brad from Molex M12圆形连接器插座, 8芯, PCB安装, 2.0A, 30 V 交流，36 V 直流, IP69K, Ultra-Lock系列

RS 库存编号:: 752-7518
制造商零件编号:: 1200840033
制造商:: Brad from Molex

Brad from Molex M12圆形连接器插座, 8芯, PCB安装, 2.0A, 30 V 交流，36 V 直流, IP69K, Ultra-Lock系列

可享批量折扣

小计（1 件）*

RMB178.35

(不含税)

RMB201.54

现货库存，可于8工作日发货。

实时库存查询

单位	每单位
1 - 9	RMB178.35
10 - 49	RMB172.99
50 - 99	RMB167.63
100 - 249	RMB164.06
250 +	RMB160.50

* 参考价格

RS 库存编号:: 752-7518
制造商零件编号:: 1200840033
制造商:: Brad from Molex

Datasheet - 1200840033

Brad® Ultra-Lock® M12 母面板安装插座

Brad® Ultra-Lock® 母面板安装插座，带 Ultra-Lock 功能和 M12 单键槽(A-编码）。这些 Brad® Ultra-Lock® 母面板安装插座具有镀镍黄铜外壳，镀金铜合金触点，UL1061 PVC 导线并将与标准螺纹 M12 和 Ultra-Lock 线组配接。

符合 IEC 的面板安装插座
Ultra-Lock 功能
完全密封设计，适用于恶劣环境中的 IP67 保护
NEMA 6 级
UL1061 300V，80°C PVC 导线

注

配置：
WRxJ20xxxxxxxx：PG9，前面板安装
WRxJ40xxxxxxxx：PG9，背板安装
WRxU20xxxxxxxx：M16 x 1.5 前面板安装
WRxU40xxxx：M16 x 1.5 背板安装，带印刷电路板引脚

标准

cCSAus 认证 LR6837（4-5 极型号）

Molex Ultra-Lock Series Circular Connector, 8 Contacts, PCB Mounting - 1200840033

This circular connector is a reliable solution within the automation and electronics industries, specifically designed as an 8-pin electrical connector with a PCB mount configuration. With a compact M12 size and a robust construction, this female socket connector is engineered to perform in demanding environments.

Features & Benefits

• Supports high currents up to 2A, enhancing performance
• Threaded mating design ensures secure connections under pressure
• Constructed from brass with nickel plating for durability
• Straight body orientation facilitates straightforward installation

Applications

• Suitable for connections in industrial automation systems
• Ideal for use in harsh outdoor environments requiring high durability
• Effective in robotic needing reliable electrical connections
• Used in equipment requiring robust PCB mount connections

What environmental conditions can it withstand?

It is designed to function effectively in temperatures from -25°C to +90°C and has an IP69K rating, making it resistant to dust and powerful water jets, suitable for various challenging environments.

How does the threaded mating design benefit connection stability?

The threaded mating feature creates a secure connection that helps prevent disconnection due to vibrations or movement, ensuring consistency in operational reliability.

What materials are used in its construction, and why does this matter?

The connector is constructed from brass with nickel plating, which enhances its durability and resistance to corrosion, making it well-suited for long-term outdoor use.

BRAD - M12

属性	数值
触点数目	8
安装类型	PCB
连接器尺寸	M12
插头/插座	插座
触点类型	母座
IP 防护等级	IP69K
额定电流	2.0A
主体定位	直向
系列	Ultra-Lock
额定电压	30 V 交流，36 V 直流
插接类型	螺纹式
极格式	8P
触点电镀	镍
最低工作温度	-25°C
最高工作温度	+90°C
系列号	120084
触点材料	黄铜
