这些开关完全符合IEC204、VDE 0660和IEC947标准,并通过了UL、CSA认证。可提供全系列的配件。
采用不含镉、卤素和石棉的耐热和自熄材料(UL94-VØ)制造。
请参阅产品说明 AC23A ,了解技术规格差。 3 极型号随附手柄。

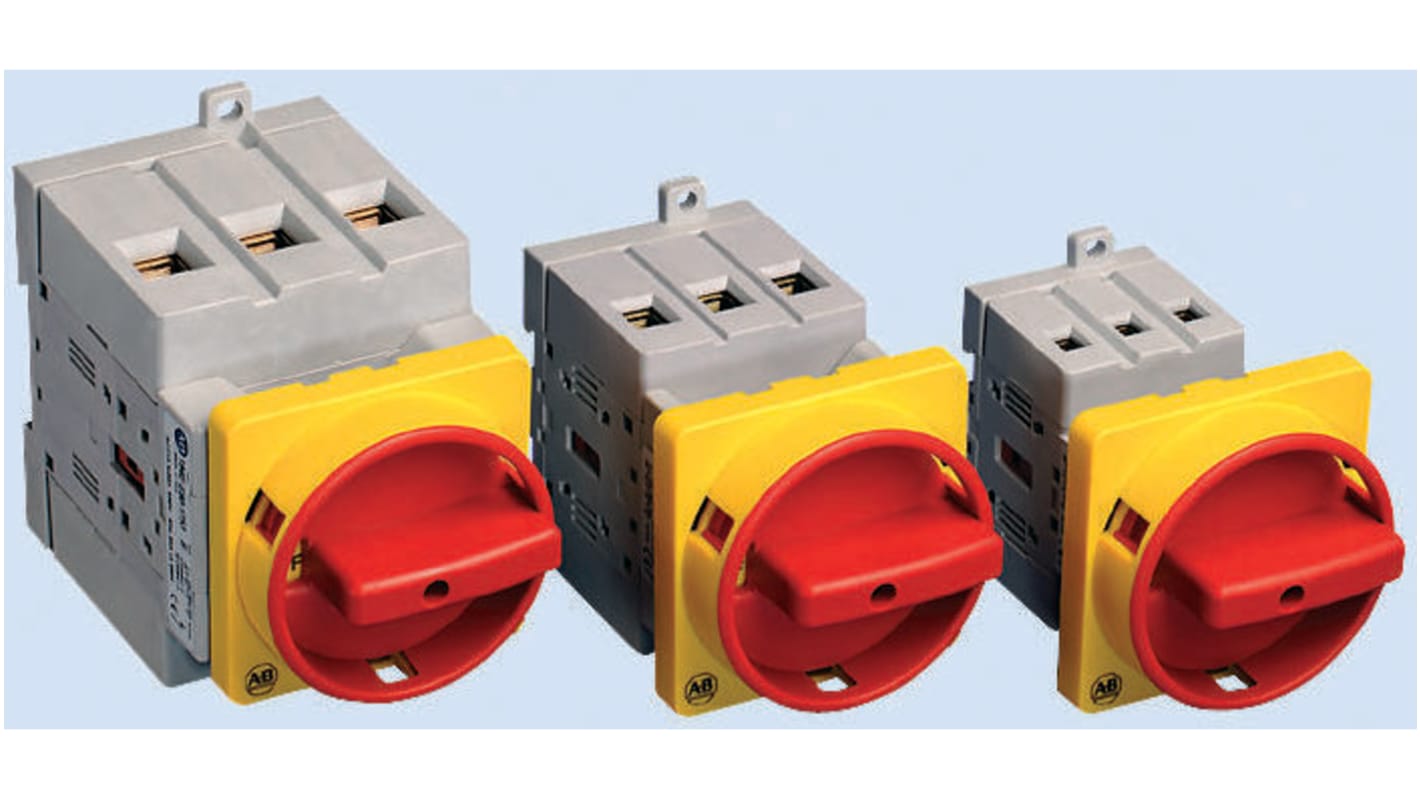

The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for Pozidriv or flat blade screwdriver. The switching category is AC23A.
属性 | 数值 |
---|---|
极数 | 3P |
最大电流 | 100A |
安装类型 | 面板 |
IP 防护等级 | IP66 |
额定功率 | 45kW |
额定电压 | 690V 交流 |
电气相位 | 3 |
接受挂锁 | 是 |
把手颜色 | 黑色/灰色,红色/黄色 |
开关额定值 | 25kA |
长度 | 144mm |
宽度 | 72mm |
深度 | 90mm |
