旅行距离范围选项

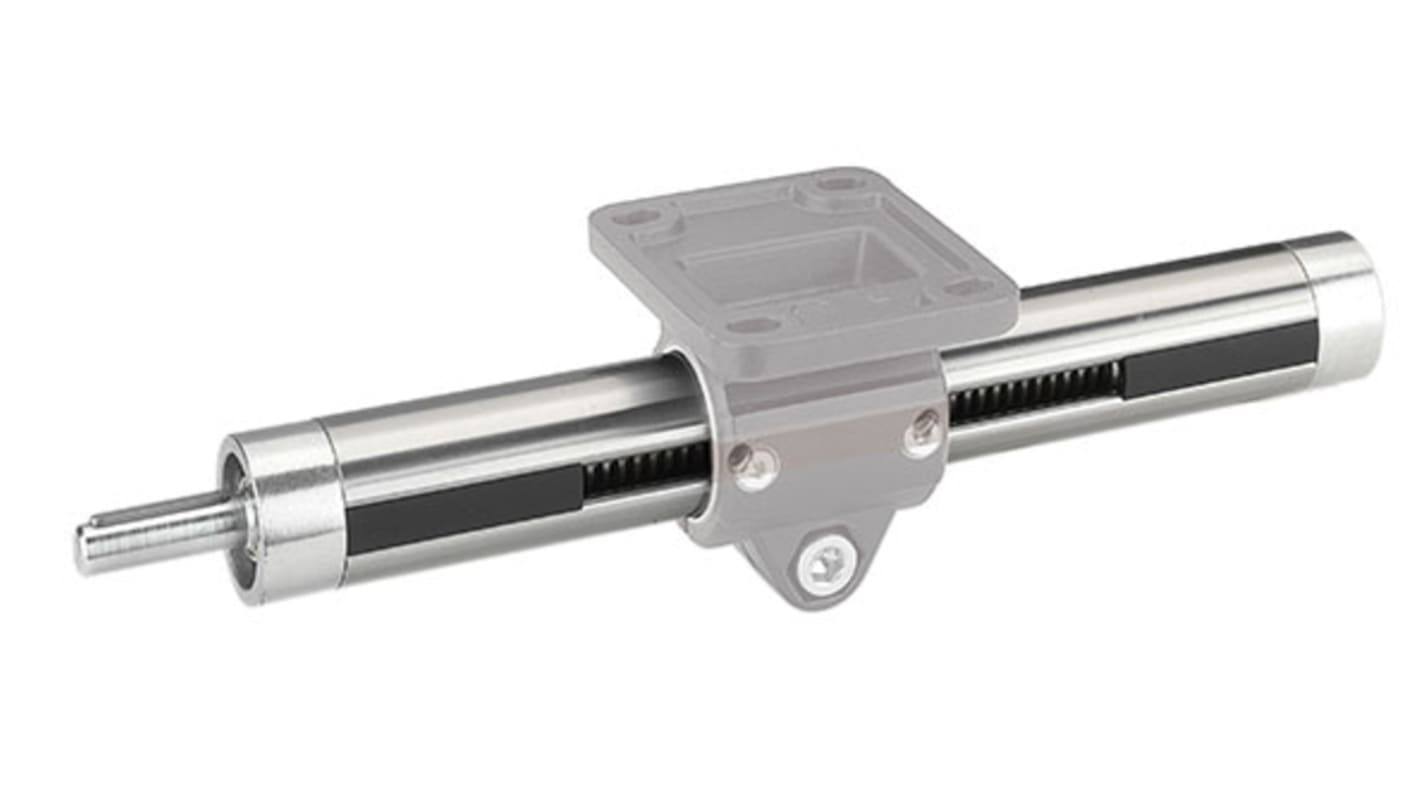

图像显示了一个 E 型线性装置,随附一个 FK 导向元件,单独提供
DIN 2391/93; DIN 59411
Cost effective positioning system
Allows integration into the tube connection system (see Guide Elements Range)
Precision steel tube construction provides high rigidity, low deflection, with high load capacity
Easy assembly
1, 2 and 3 axis movement (manual or electrically driven)
Applications include: quick and easy adjustment of label or printing applicator heads, pusher off feed/on feed systems - conveyors, jigs and fixtures, linear motion for machinery - various applications
属性 | 数值 |
---|---|
组件类型 | 管形直线单元 |
产品系列 | Rose+Krieger |
产品系统 | E |
行程距离 | 265mm |
适合支柱配置 | 50 mm |
总体长度 | 500mm |
直径 | 50mm |
材料 | 钢 |
