Economical, Type 4 safety light curtain designed for small assembly machines in ambient operating environments, or where mounting space is limited. Connection to an MSR42 controller (stock number 703-4987), improves flexibility for applications requiring two or three light curtains or other safety devices such as safety laser scanners, E-Stops or safety switches. The MSR42 controller has two PNP OSSDs which can be connected directly to the final switching device. If safety relay outputs are required, up to three safety relay expansion modules (MSR45E - stock number 703-4980) may be easily connected to the controller. A ribbon cable (stock number 703-4984) is required to interconnect up to three MSR45E safety expansion modules to an MSR42 controller. The light curtains, when used in conjunction with the MSR42 controller, have a SIL 3 rating per IEC61508. They also meet IEC61496 and UL61496 and are CE marked by TÜV.
Pigtail cable with M12 connector
3 box system with dedicated safety controller
Slim profile housing (15 mm x 20 mm)
DIN controller is also multi function safety module
Configuration of controller functionality through wiring or software
Type 4, SIL 3
The GuardShield Micro 400 safety light curtains are ordered as pairs (transmitter and receiver). The MSR42, MSR45E, ribbon cable connectors and patch cords are ordered separately to complete the safety system.

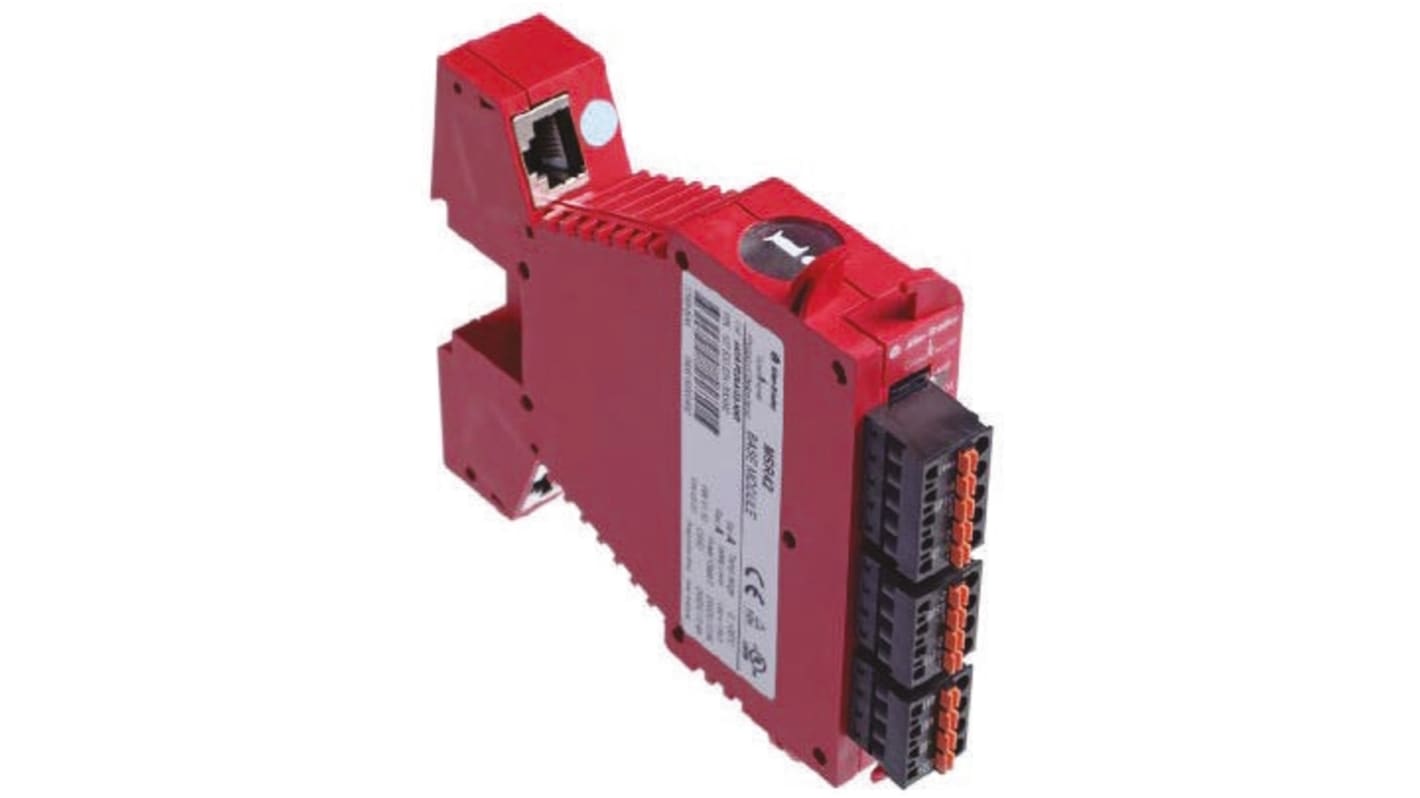

选择罗克韦尔自动化公司 Allen Bradley 系列的安全控制器,在您的工业设备上管理和配置安全窗帘。它具有输入端口,可让您连接安全开关和紧急停止装置等设备。得益于可拆卸弹簧 Terminal 连接器,您可以轻松设置此装置的布线并将其配置为硬线工作模式。它采用 DIN 导轨安装,因此您无需任何工具即可安装。您会发现此控制器在工业环境中的材料处理设备中非常有用。
• 13 个 LED 指示灯,易于监控和故障诊断
•功耗为 2.4W ,以实现能效
•热塑性外壳提供耐冲击和耐磨损性
• IP20 等级,可耐受尺寸大于 12mm 的工具和物体
•广泛的工作温度范围: 0°C 至 +55°C ,适合在严苛的条件下使用
• EN 954-1
• IEC/EN 60204-1
• IEC 61496-1
• CE
• TÜV
此安全控制器的额定电压为 24V 直流,使其适用于低电压系统。
属性 | 数值 |
---|---|
系列 | MSR42 |
安全输入数量 | 4 |
安全输出数量 | 2 |
安全类别 | 4 |
SIL | SIL 3 |
电源电压 | 24 V 直流 |
触点额定电流 | 400 mA |
IP 防护等级 | IP20 |
