Schneider Electric 采用黑色手柄和多种位置、提供 Harmony ZB4 系列开关头。圆形和镀铬金属、设计 Durable 、 Simple to Set 、 flexible 和 Robust 。 每个开关头都包含一个巧妙的锁定系统、该系统是一个卡扣式头和主体、可以使用一个螺钉拧紧头、以确保安全和简单的安装。Harmony ZB4 系列的开关头也提供不同的位置和操作类型。
所有刀头都需要一个车身 / 固定环和触点主体、可从我们的产品目录中找到:
套圈 331-0142
触点主体 331-0158
提供 ZB4 开关头: 330-9041 、 330-9057 、 330-9063 、 330-9085 、 330-9091 和 330-9108 。
低负载电气触点
螺钉夹连接、印刷电路引脚
巧妙的锁定系统
灵活且坚固
-40°C 至 70°C 工作温度
符合 IEC 、 UL 、 CSA 标准
CE 标志
IP69 、 IP67 符合 IEC 60529 和 IP69K 标准
NEMA 13 和 NEMA 4X
应用程序 - 专为行业、基础设施和服务部门使用而设计、包括:
汽车
控制系统面板构建器
能源分配
公共工程
建筑
机场

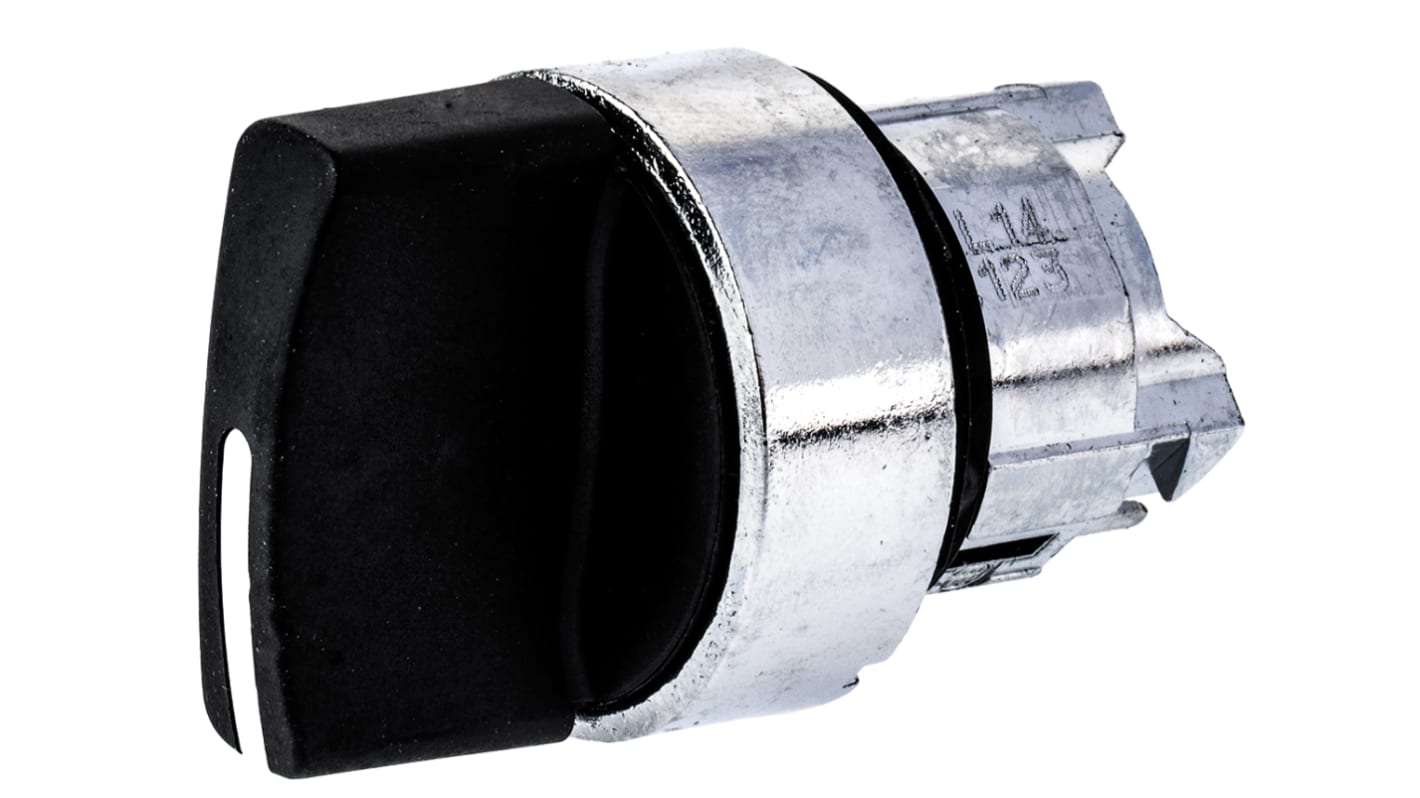

This selector switch head by Schneider Electric is designed with a 22mm cutout diameter. The product offers high-quality performance and durability in various industrial applications. With a black standard handle and spring return switch actuation, this selector switch head is a reliable choice for automation and control systems.
• IP66, IP67, IP69 for protection against environmental factors
• Resistance to high-pressure washer upto 7000000 Pa at 55°C
• Mechanical durability of 1000000 cycles for longevity
• Vibration and shock resistance for consistent performance
• Ideal for use in automation systems, control panels, and electrical enclosures
• Suitable for industrial machinery, manufacturing equipment, and process control systems
• Used in commercial buildings, HVAC systems, and transportation infrastructure
Yes, the selector switch head is designed to resist high-pressure washing up to 7000000 Pa at 55°C for optimal performance.
The spring return mechanism ensures reliable operation by returning the switch smoothly from both left and right positions.
Yes, with an IP Rating of IP66, IP67, and IP69, the switch head offers protection against dust, water, and high-pressure cleaning.
Yes, the selector switch head is compatible with various control components and can be integrated into complex control systems.
模块化系列 22 mm 按钮和导向照明设备,带铬制圈。
按钮头自动保持在切口内的位置中。
自锁、抗振和三点固定。
提供预标记图例牌和空白标记牌。
使用标签软件自定义的图例,参见库存号 503-5023。
快速连接。
利用简单的夹紧安装,最多可以安装九个电气块。
独特的一体式 LED 专利技术,提供 100,000 个小时的抗振和抗电磁干扰运行。
工作温度范围 -25 至 +70°C。
所有按钮头都需要 22.3 mm 至 22.5 mm 直径的面板开口。
属性 | 数值 |
---|---|
执行器颜色 | 黑色 |
照明 | 否 |
档位数目 | 2 |
开孔直径 | 22mm |
执行器类型 | 标准手柄 |
开关操作 | 从左和右弹簧复位 |
系列 | Harmony XB4 |
IP 防护等级 | IP66、 IP67, IP69 |
投掷角度 | 90° |
Better World认证 | Green Premium |
Better World产品 | 是 |
