Integral position indicator
90 degree knob offset option for use in vertical mount enclosures
60 degree switching angle
Ergonomic thumb grip
Non illuminated, black with white insert operator
Select required contact configuration separately

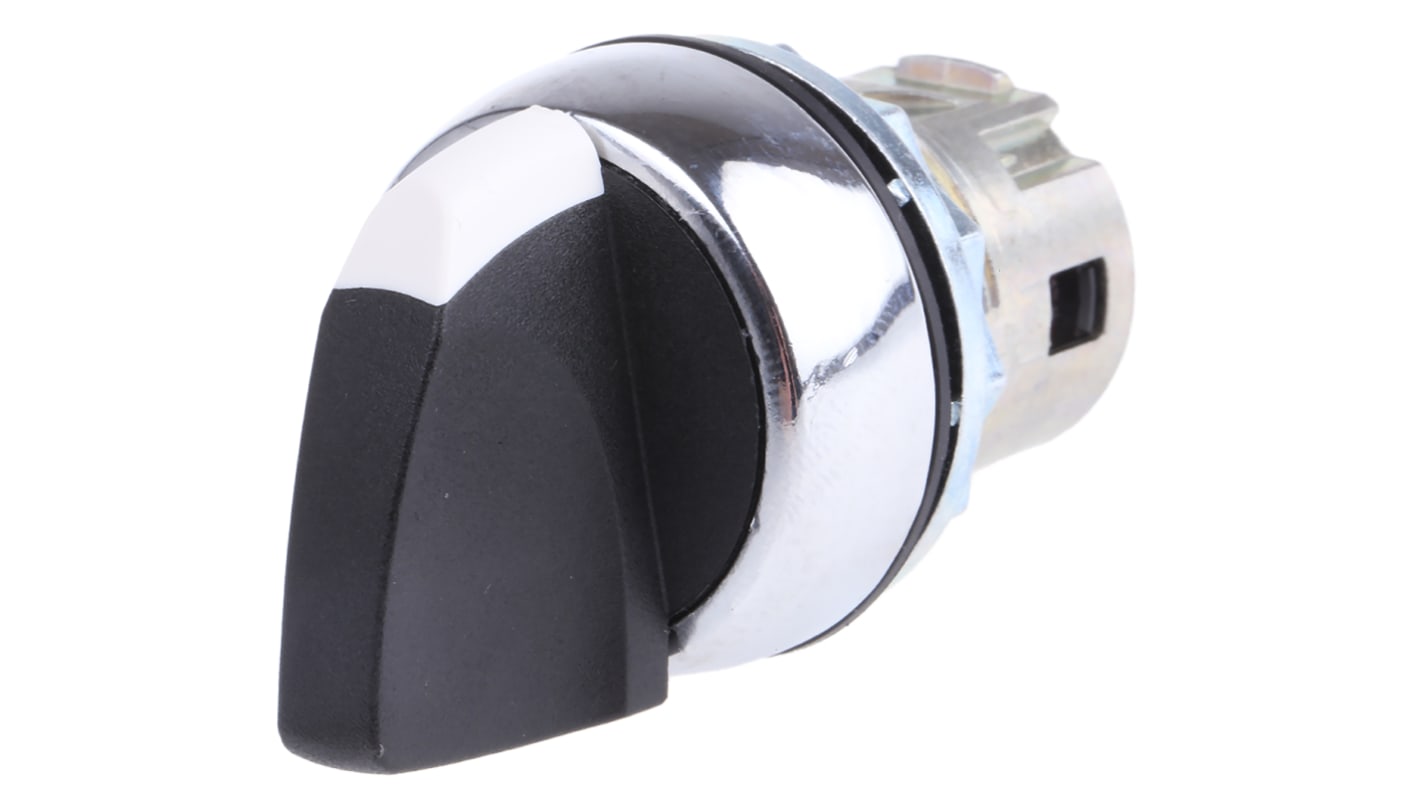

This selector switch head from Rockwell Automation's Allen Bradley range lets you adjust the operating status of your device between three different states. It features an industry-standard cutout diameter of 22mm, so you can easily fit it into your existing control panel. For durability, its hard-wearing metal housing is resistant to hard impacts. This housing also comes with an anodised plating finish, which makes it resistant to corrosion and suitable for use in damp or humid conditions. Thanks to its ergonomic thumb grip, this switch supports frequent operation without straining your hands.
IP66 rating indicates it's protected against dust and high-pressure jets of water
Single-person panel installation design for quick mounting
White-coloured position indicator for easy configuration of operating status
CE
UL
CSA
CCC
When you turn the selector switch, the connected electric circuit is activated and remains on even when you let go of the knob. To reset it, simply turn the switch in a different direction.
Allen Bradley 的 800-F 系列按钮,指示灯和附件经过专业设计和制造,可通过快速轻松地提醒人员危险,满足严苛的性能规格并减少停机时间。由于采用了先进的实体建模技术和有限元分析,每个零部件都能提供最佳的耐用性和效率。
操作员可以快速,轻松地安装,从而节省时间和金钱。800-F 系列具有以下优点: IP66 保护,符合 CE/UL/CSA 标准和 CCC (中国标准) ,耐腐蚀阳极化镀层,每个操作人员多达六个电路,以及单人面板安装。此系列还符合工业标准 22mm 孔固定要求。
800F 系列涵盖以下产品:
照明 / 非照明按钮和蘑菇形操控器
指示灯 LED 操作
选择器,扳钮,多功能和钥匙选择器开关 (2 和 3 个位置)
定制激光雕刻,用于按钮盖和扩散器
单转电位计总成
紧急停止按钮,包括独特的自监控触点块
面板轮廓的前部较低
提供多种硅树脂套管
塑料外壳
金属操控器坚固耐用
属性 | 数值 |
---|---|
执行器颜色 | 黑色 |
照明 | 否 |
档位数目 | 3 |
开孔直径 | 22mm |
执行器类型 | 标准手柄 |
开关操作 | 闭锁型 |
系列 | 800F |
IP 防护等级 | IP66 |
投掷角度 | 45° |
