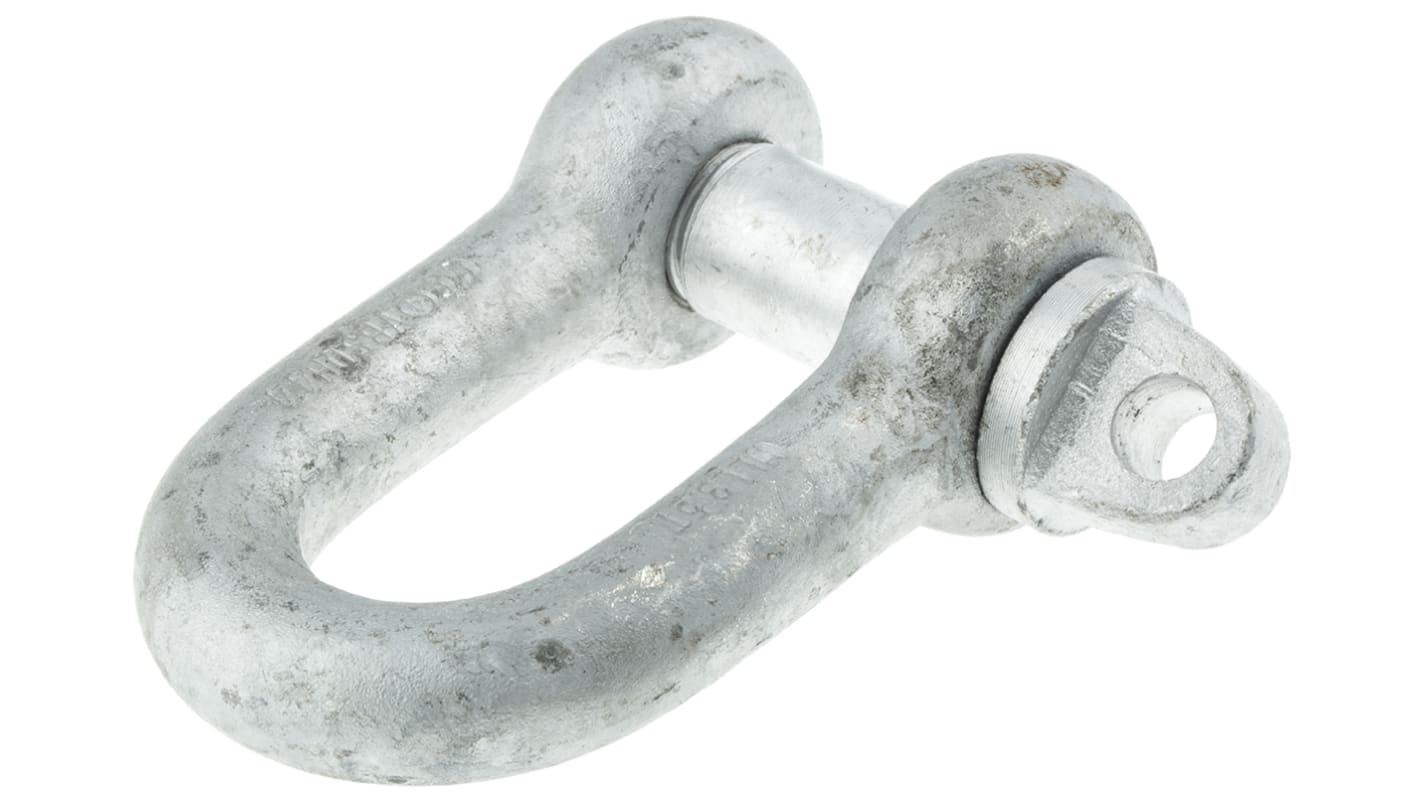

This shackle from RS PRO is designed for securing loads, either as a tie-down or for lifting. They are rated for up to 3.5 tonnes each and can fit a 1 3/8 in rope or chain to be held securely. As a screw pin shackle, it's secured by passing the pin between the jaws and screwing it tight, though additional tightening torque can be provided by passing a bar through the hole in the pin if required. The one-inch pin can be passed through a mounting point on the load or ground to hold it down.
This type of shackle is suitable for use in shipping for securing cargo, attaching a load to a crane or anywhere else where a physical connection is required. The high-tensile galvanised steel construction ensures both strength and resistance to corrosion.
Screw pin
D-shackle
Zinc-plated finish
Zinc-plated steel material
Jaw width of 1 3/8 in
Pin diameter of 1 in
Shackle diameter of 7/8 in
Safe working load of 3.5 t
属性 | 数值 |
---|---|
材料 | 镀锌钢 |
带销U形环型 | D 型卸扣 |
针类型 | 螺丝销 |
安全工作负荷 | 3.5t |
带销U形环直径 | 7/8in |
开口宽度 | 1-3/8in |
引脚直径 | 1in |
