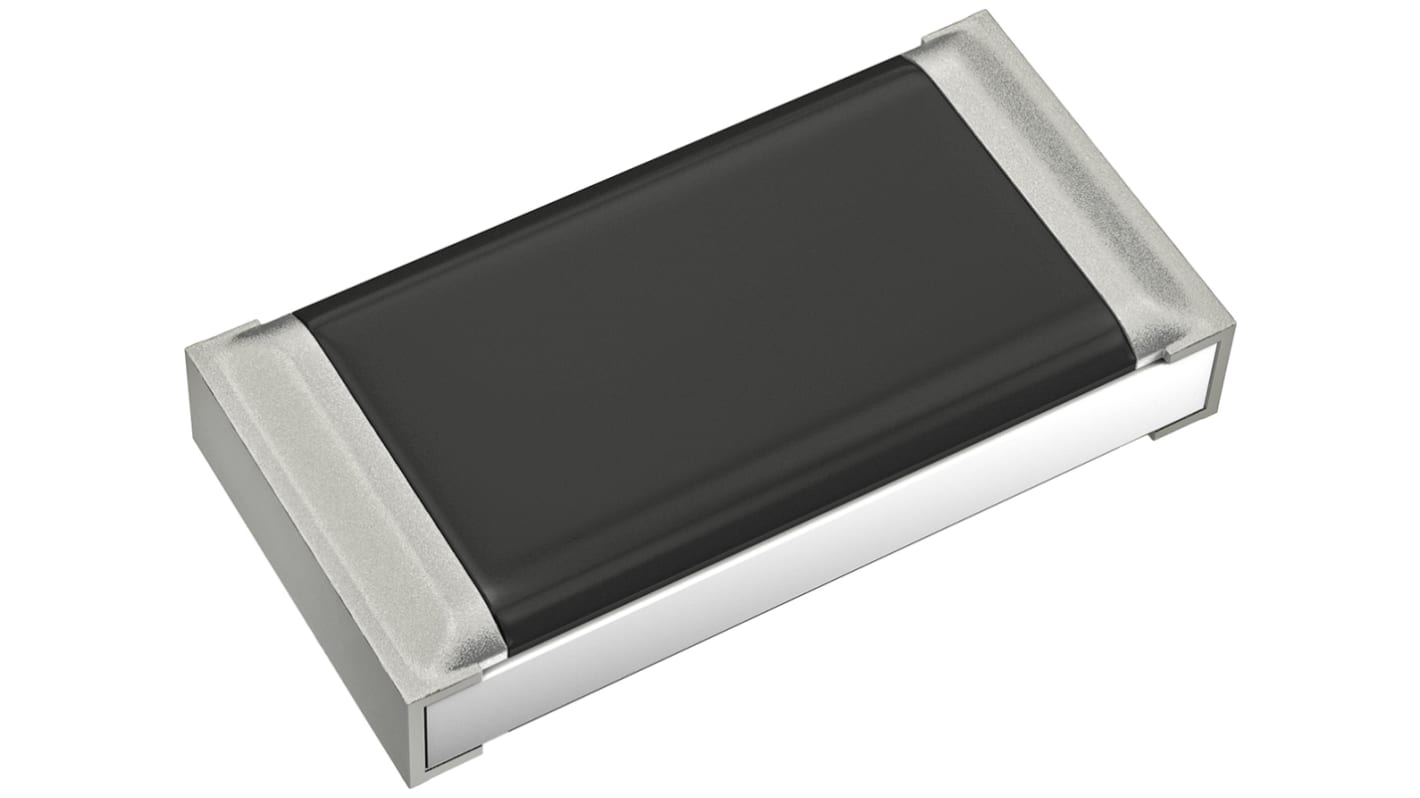

Panasonic 2512贴片电阻, 220mΩ, 1W, ±1%容差, ±200ppm/°C, ERJ1T系列

RS 库存编号:: 922-6113
制造商零件编号:: ERJ1TRQFR22U
制造商:: Panasonic

Panasonic 2512贴片电阻, 220mΩ, 1W, ±1%容差, ±200ppm/°C, ERJ1T系列

可享批量折扣

单价个/ 个（每带 4000 ）*

RMB1.113

(不含税)

RMB1.258

当前暂无库存，可于2025-11-03发货，5 工作日送达。

单位	每单位	每卷*
4000 - 4000	RMB1.113	RMB4,452.00
8000 - 12000	RMB1.091	RMB4,364.00
16000 +	RMB1.069	RMB4,276.00

* 参考价格

RS 库存编号:: 922-6113
制造商零件编号:: ERJ1TRQFR22U
制造商:: Panasonic

Panasonic ERJ 1TR Low Resistance Thick Film Chip Resistors Datasheet

Panasonic ERJ1T Series SMD Resistor, 220mΩ Resistance, ±1 % Tolerance - ERJ1TRQFR22U

This SMD resistor offers precision and reliability for various electronic applications. With a resistance value of 220 mΩ, this thick film resistor is packaged in a compact 2512 (6432M) case. Designed for efficiency, it operates within a temperature range of -55 °C to 125 °C, making it suitable for a range of environments.

Features & Benefits

• Designed for automotive applications with AEC-Q200 compliance
• ±1% tolerance ensures precise and consistent performance
• High power rating of 1W for demanding applications
• Thick film technology delivers low resistance and reliability
• Compact 2512 package for space-saving integration
• Temperature coefficient of ±200 ppm/°C for stability

Applications

• Used for automotive electronic circuits
• Ideal for power supply management systems
• Suitable for sensor and actuator circuits
• Utilised in power distribution for industrial automation
• Employed in low resistance sensing

What temperature range can it operate effectively within?

This resistor operates effectively between -55 °C and 125 °C, accommodating various conditions in automotive and industrial applications.

How does the tolerance impact circuit performance?

A tolerance of ±1% allows for enhanced precision in circuit measurements, ensuring reliable and consistent operation in electronic designs.

What advantages does thick film technology provide?

Thick film technology offers superior performance in terms of durability and operational stability, making it ideal for high-voltage and high-current applications.

Can it be integrated into high-power circuits?

Yes, with a power rating of 1W, it is specifically designed to handle higher power requirements in various electronic circuits.

Why is AEC-Q200 compliance significant for this resistor?

AEC-Q200 compliance signifies that it meets stringent automotive quality and performance standards, ensuring reliability in critical automotive applications.

属性	数值
电阻值	220mΩ
技术	厚膜
封装/外壳	2512 (6432M)
容差	±1%
额定功率	1W
温度系数	±200ppm/°C
系列	ERJ1T
最低工作温度	-55°C
最高工作温度	+125°C
