BEL POWER SOLUTIONS INC 24V 直流开关电源, 400W, 17A, 1输出点, 底盘安装, 127mmx76.2mmx38.1mm

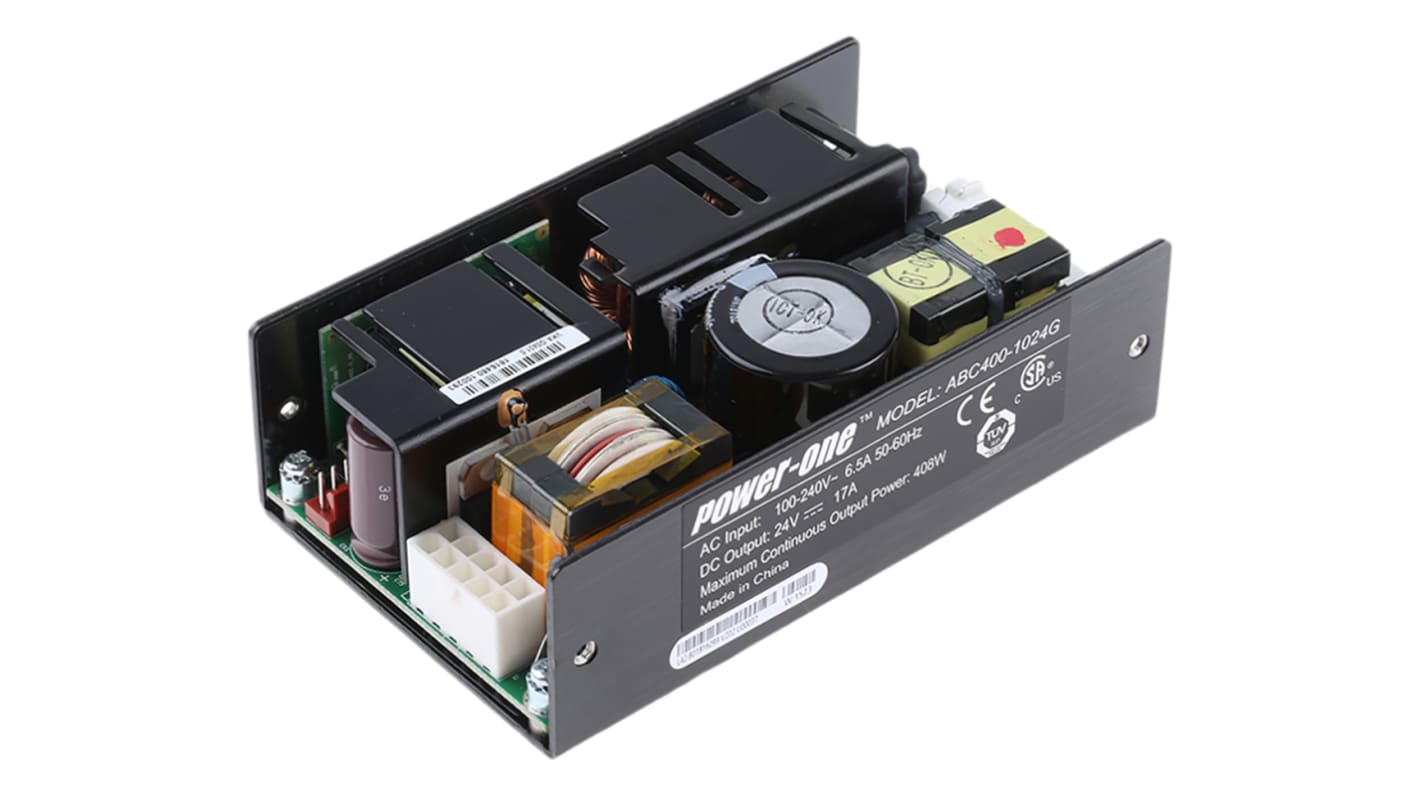

BEL POWER SOLUTIONS INC Embedded Switch Mode Power Supply

The BEL POWER SOLUTIONS INC ABC200-10XXG series 400W embedded switch mode power supply has an output voltage of 24VDC at 8.5A current. This AC to DC plug-in device with a single output has a high power density and incorporates boundary conduction mode PFC converter and soft-switching LLC converter resulting in increased system reliability and efficiency up to 91%. It has compact design and universal input supply voltage rating ranging from 90VAC to 264VAC at a frequency ranging from 47Hz to 63Hz.
Note:
Derate power above 50°C

Features and Benefits

High power density is 15W/in3
Active power factor correction
Power good signal
Over temperature, overvoltage, overcurrent and short-circuit protection
Low conducted

Applications

Tele communication
Data communication
Industrial equipment

Certifications

Class A, EN55022 (EMC compliance)
Class A, IEC61000-3-2 (Harmonic Emissions)
UL 60950-1 second edition
CSA-C22.2 No. 60950-1-03 second edition
IEC 60950-1:2005
EN 60950-1:2006
CE certified
CB Approval
CSA certified
