Phoenix Contact 时间继电器, 19.2 → 30V 直流电源, 0.1 s → 300min范围, 1触点, 2910140

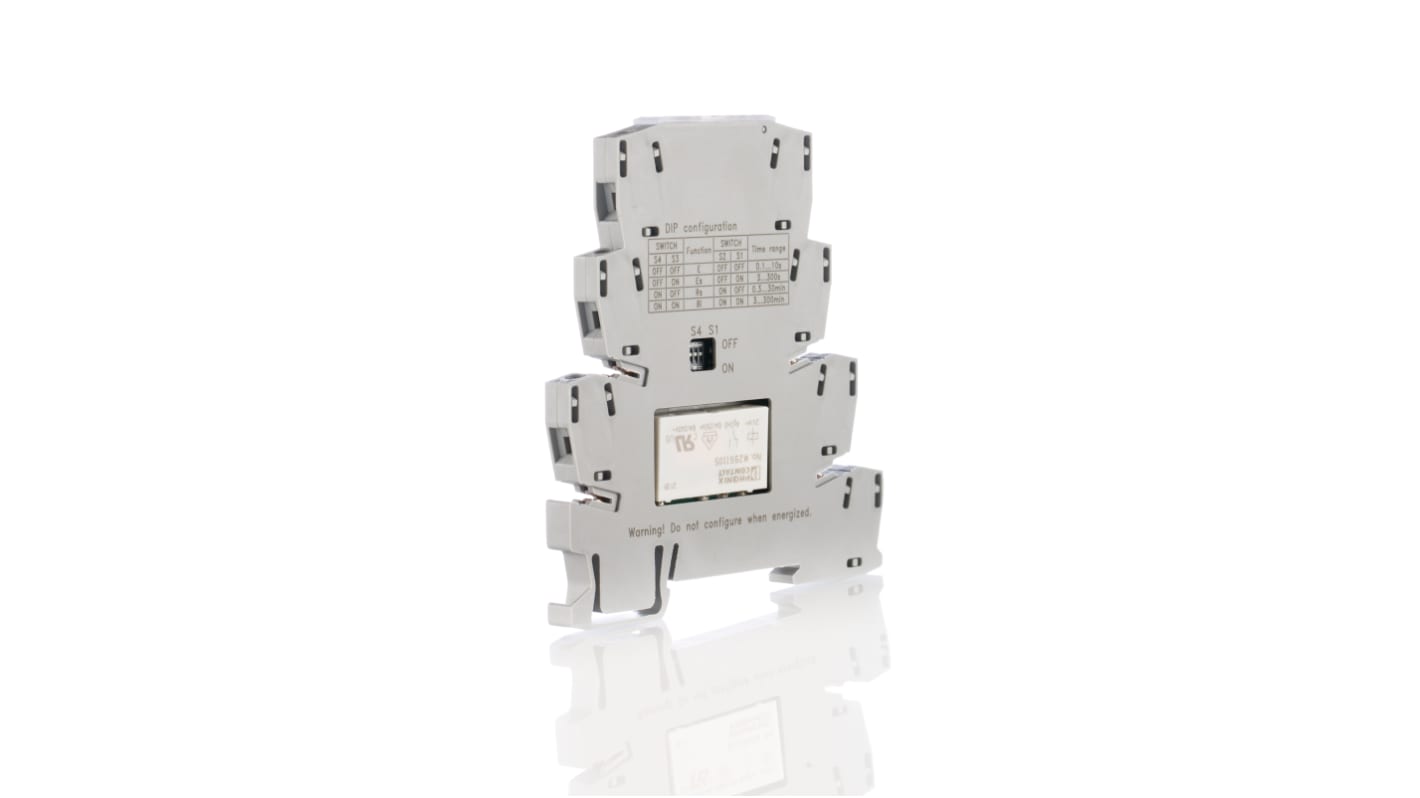

Phoenix Contact Narrow Time Delay Relay, 19.2 to 30V DC - PLC-TR-1T-MUL-300M - 2910140

Use this time delay relay from Phoenix Contact to control the time at which your electrical device is switched on or off. You can use it in four ways: as a switch-on delay, as a switch-on delay and control contact, as a release delay and control contact, or as a flashing beginning with pulse. It uses an SPDT (single-pole, double-throw) switch to change quickly between states.
An easy-to-read LED (light-emitting diode) signal shows you the current state of the device. The green LED tells you it's on, and the yellow one lets you know it's in a relay state. You can adjust the time range between 0.1s and 300 minutes.
This relay is housed in PA (polyamide) material, which regulates its temperature to prevent overheating. Mount it tool-free on a DIN rail. The narrow (6.2mm wide) body means it fits into small spaces with ease.

Features & Benefits

• Service life of up to 20 million cycles for reliable long-term use
• UL 94 V-0 flammability rating means flames are extinguished within 10 seconds
• IP20 (ingress protection) rating for finger safety
