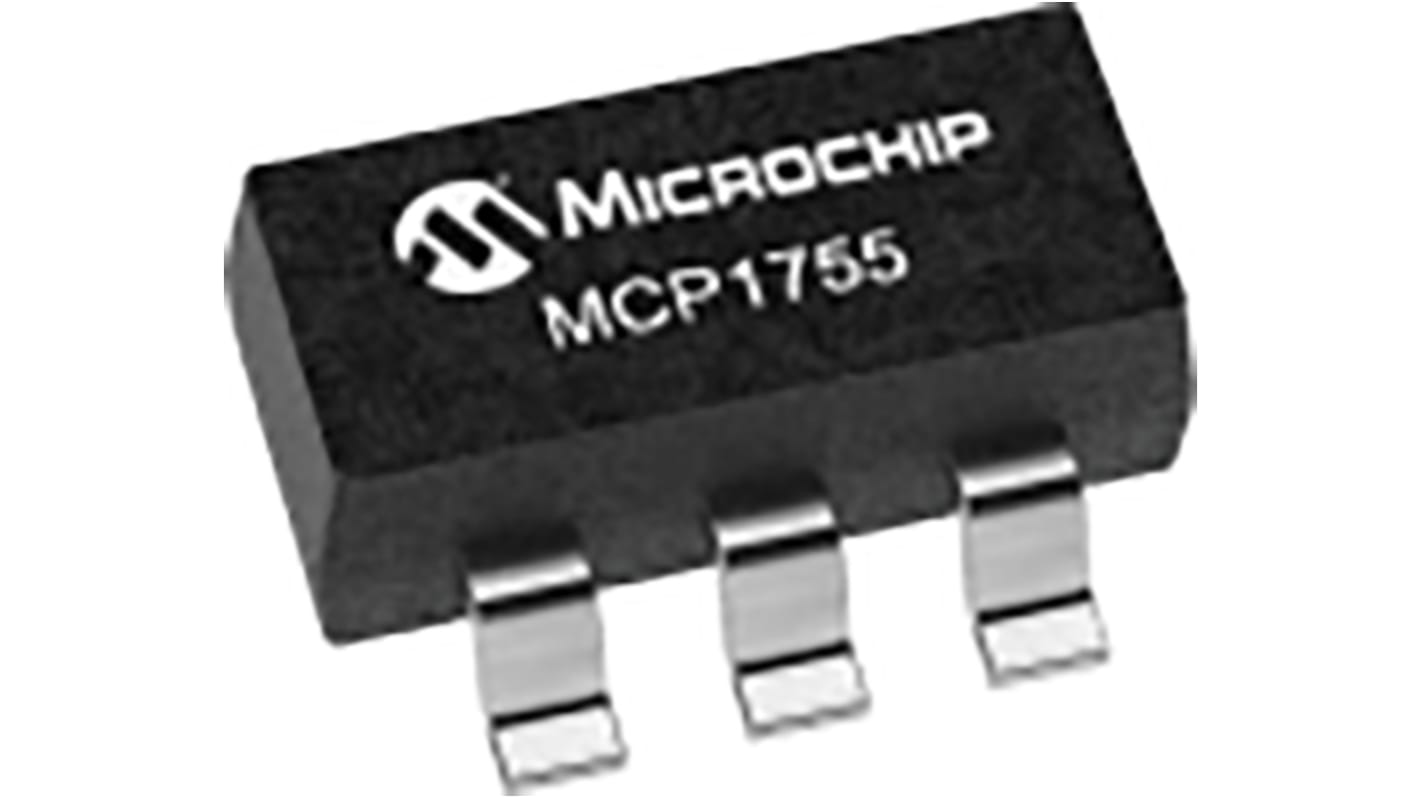

The MCP1755/MCP1755S is a 16 volt, high PSRR voltage regulator with short circuit current foldback. The MCP1755/MCP1755S regulator provides up to 300 mA of current.
Additional Features, High PSRR: 80 dB @ 1 kHz typical 68.0 μA Typical Quiescent Current Input Operating Voltage Range: 3.6V to16.0V 300 mA Output Current for all output voltages Low Dropout Voltage, 300 mV typical @ 300 mA 0.85% Typical Output Voltage accuracy Standard Output Voltage Options (1.8V, 2.5V, 3.0V, 3.3V, 5.0V) Output voltage range 1.8V to 5.5V in 0.1Vincrements Output Voltage Tolerances of ±2.0% over entiretemperature range Stable with minimum 1.0 μF output capacitance Power Good Output Shutdown Input True Current Foldback Protection Short-Circuit Protection Overtemperature Protection
