The MIC5225 is a 150mA highly accurate, low dropout regulator with high input voltage and ultra-low ground current. This combination of high input voltage and low ground current makes the MIC5225 ideal for a wide variety of applications including USB and portable electronics applications, using 1-cell, 2-cell, or 3-cell Li-Ion battery inputs.A μCap LDO design, the MIC5225 is stable with either a ceramic or tantalum output capacitor.

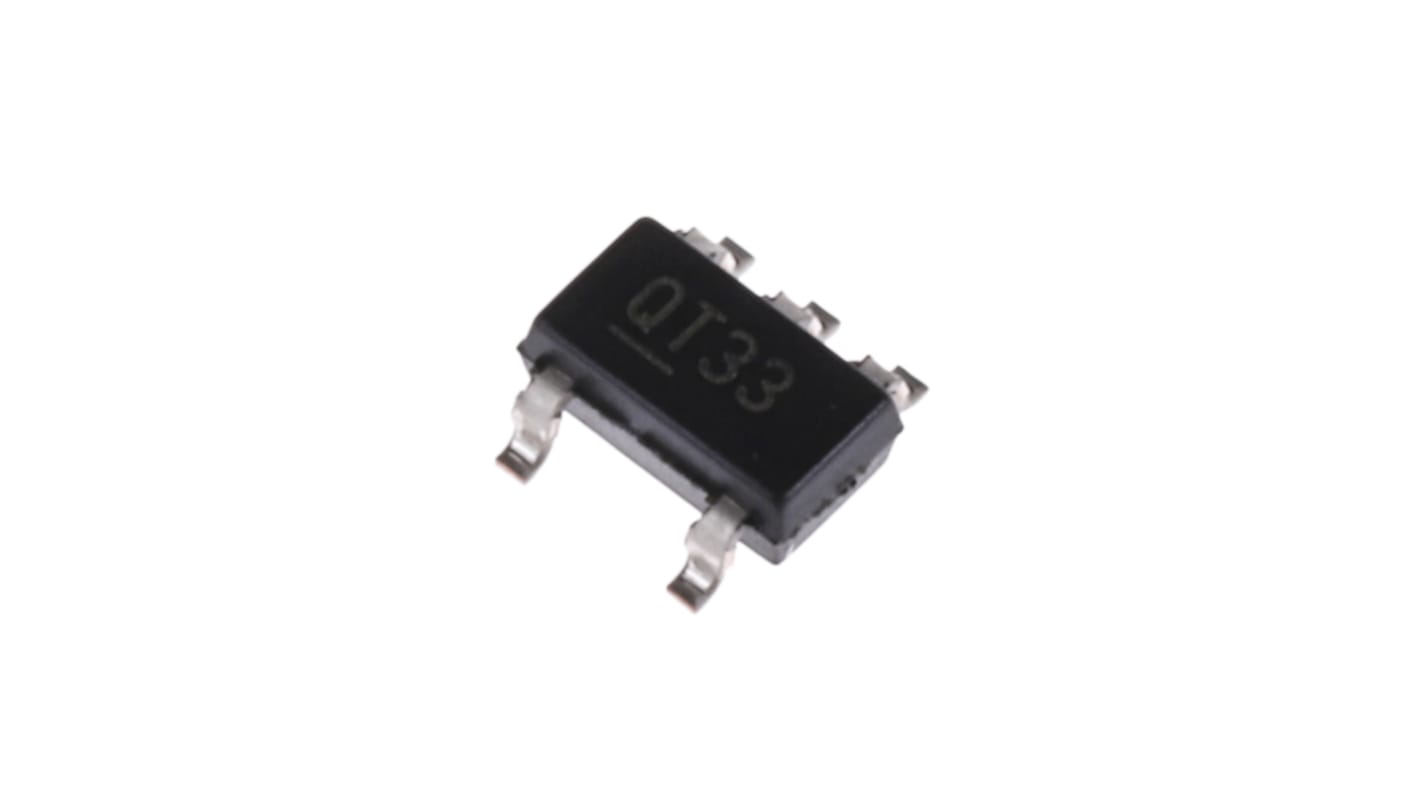

Wide input voltage range: 2.3V to 16V High output accuracy of ±2.0% over temperature Guaranteed 150mA output Very low ground current: 29μA Low dropout voltage of 310mV at 150mA μCap: stable with ceramic or tantalum capacitors Excellent line and load regulation specifications Reverse battery protection Reverse leakage protection Zero off-mode current Thermal shutdown and current limit protection IttyBitty® SOT-23-5 package
